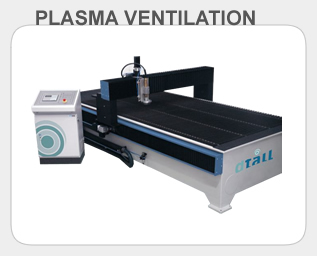

PRODUCTS - PLASMA - PLASMA VENTILATION








Cutting machine designed especially for ventilation and metal work.

Equipped with a high-performance digital control and performance optimising software .

Its easy-to-use interface makes this model a simple and cost effective machine.

DESCRIPTION:

  • Numerical control: Two multi-function axes.
  • Venting: Requires connection to an outlet meeting current environmental regulations.
  • Protection: PVC covers for all transmission components.
  • Communication port: RS232
  • Cutter: Hypertherm POWERMAX1000
  • Programme: Lantek
  • Cutting medium: Air
  • Bench: The cutting surface is made of easily replaced blades to keep the machine in optimum working order.

TECHNICAL SPECIFICATIONS:

  • Machine dimensions: 4.100 x 2.100 mm
  • Useful cutting surface: 3.000 x 1.500 mm
  • Maximum cut thickness: 8 mm
  • Minimum cut thickness: 0.5 mm
  • Cutter: Hypertherm. POWERMAX1000
  • Material cut: Steel, galvanised metals, aluminium, stainless steel, etc.
  • Travel speed: 20 metres/minute.
  • Cutting speed: Depends on the thickness of material used .

Downloads:
 BROCHURE
