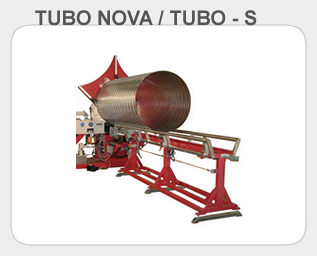

Tubeformer

• Automatic counting system for number of tubes produced
• Automatic tube ejection device
• Automatic setting and length measuring device

Characteristics:
Machine does seamfolded spiral tubes.

• Diameter of tubes: 5 to 54 inch ( 125 to 1400 mm ) TUBO-S
• Diameter of tubes 3 to 54 ich ( 80 to 1400 mm) TUBO-NOVA
• Sheet Metal thickness: up to 20 ga (1.0 mm ) for galvanized sheet metal

Main features of this machine:

• Dies made of hardened spring steel
  - high service life
  - economic
  - no space for storing needed - fast change from one diameter to another
• One profiling station for all thicknesses
• Driven profiling rolls thus no marks from ( knurled ) driving roll.
• Brill system for processing of tubes in stainless steel, PVC coated steel, aluminium and copper.
