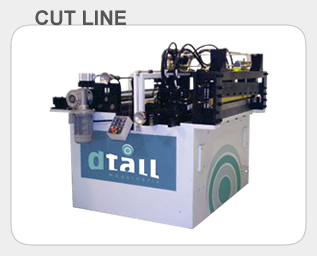

PRODUCTS - CUT LINE




Guillotine shear

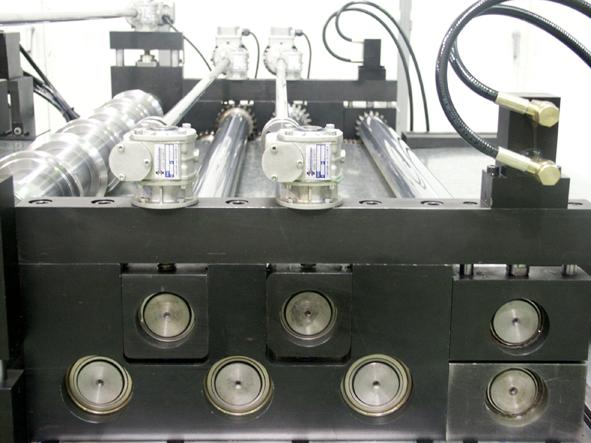

Straightening

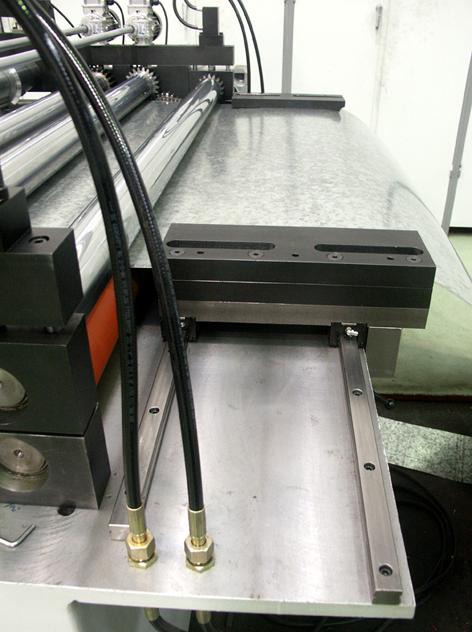

Guided

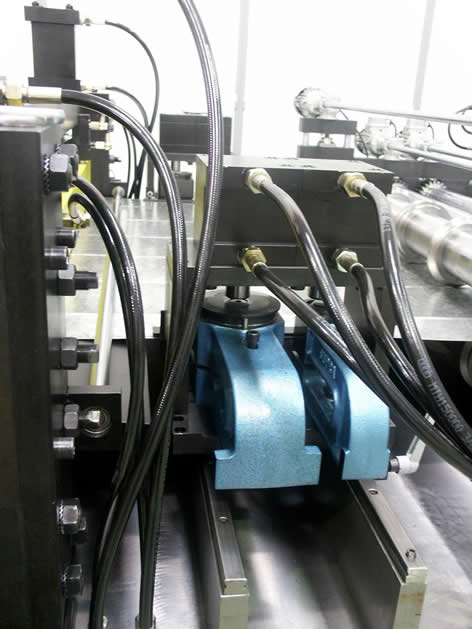

Punching

* Click image to enlarge



Designed machine in order that from a bobbin of sheet to realize the transverse cut. From this basic machine can be added an others components to the machine in order that it should be more complete and automated (longitudinal cut, ribbing, punching).

TECHNICAL SPECIFICATIONS:

  • Working width: 1500 mm
  • Maximum roller weight: 5000 Kg
  • Maximum galvanised steel cutting thickness: 1.2 mm
  • Maximum stainless steel cutting thickness: 0.8 mm
  • Minimum thickness: 0.5 mm
  • Positioning accuracy + - 0.25 mm
  • Adjustable speed range: 5-15 m/min

Machine composition:

  • SYSTEM OF GUIDES AND STRAIGHTENED
  • SHEAR
  • NUMERICAL CONTROL

Optional Accessories:

  • DECOILER
  • RIBBING
  • PUNCHING.
  • SHEARING
  • PITTSBURGH PROFILING SYSTE
  • FOLDER.

Downloads:
 BROCHURE
